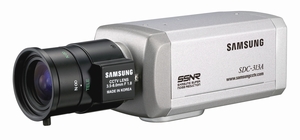

SAMSUNG SDC-313
1/3" High Resolution Color camera

- 1/3" Sony Super HAD color CCD
- Ultra High Resolution of 530TV lines
- 0.3 Lux@F1.2 (color) / 0.002 Lux (Sens-up mode)
- Removed noise, ghosting effect with SSNR
- White Balance - ATW / AWC / Manual selectable
(Color Temperature: 1800¡ÆK ~ 10,500¡ÆK)
- Privacy image masking with free position
- Motion Detection
- OSD (On Screen Display)
- S/N ratio of 50dB
- Power source: AC 24V(NA/PA), DC 12V(ND/PD)

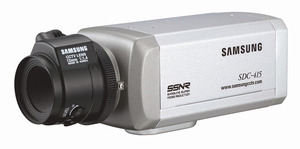

SAMSUNG SDC-415
1/3¡± High Resolution, Day & Night Camera

• 1/3¡± Super HAD color CCD
• SSNR digital noise reduction saves DVR storage space
• Day & Night capability for 24/7 operation
• High resolution of 530TV lines
• Min. illumination of 0.3Lux@F1.2 (Color)
0.002Lux@F1.2 (Color sens-up)
• Privacy masking with 4 programmable zones
• Back light compensation
• Motion detection
• OSD (On Screen Display)
• S/N ratio of 50dB
• Voltage : 24V AC, 12V DC (SDC-415NA/ND/PA/PD)
230V AC (SDC-415PH)

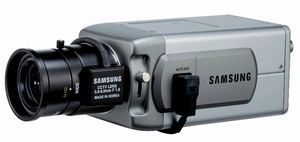

SAMSUNG SHC-730
1/3" Low Light, WDR Camera

• 1/3¡± Vertical double density color CCD
• Enhanced WDR function : Max. 52dB
• SSNR digital noise reduction saves DVR storage space
• Day & Night with ICR (Infrared Cutfilter Removal)
• High resolution of 520TV lines (Color), 570TV lines (B/W)
• Min. illumination of 0.13Lux@F1.2 (Color)
0.01Lux@F1.2 (B/W)
0.001Lux@F1.2 (Color sens-up)
• Privacy masking with 4 programmable zones
• Motion detection
• RS-232C remote setup control
• OSD (On Screen Display)
• S/N ratio of 50dB
• Dual voltage : 24V AC / 12V DC

SAMSUNG SHC-735
1/3" High Resolution, WDR Camera

• 1/3" Vertical double density color CCD
• Built-in SV-IV, the latest generation of SV DSP engine
• Powerful 128X WDR function : Max. 52dB
• Built-in SSNRII, Upgraded Noise Reduction technology
• Day & Night with ICR (Infrared Cutfilter Removal)
• Unmatched image resolution of 560TV lines (Color), 700TV lines (B/W)
• Min. illumination of 0.3Lux@F1.2 (Color)
0.01Lux@F1.2 (B/W)
0.001Lux@F1.2 (Color sens-up)
• Privacy masking with 8 programmable zones
• HLC (Highlight Compensation), DIS (Digital Image Stabilization)
• Intelligent MD : 8 zones, RS-485 remote setup control
• Multi-language OSD, S/N ratio of 52dB
• Dual voltage : 24V AC / 12V DC
• Voltage : 230V AC (SHC-735PH)
